Detail Information
SWC Cardan Joint Shaft
Double Cardan
Can be Light Duty or Heavy Duty
Light Duty Flange From 58mm – 225mm
Heavy Duty Flange From 160mm – 620mm
- Cardan Shaft Drawings

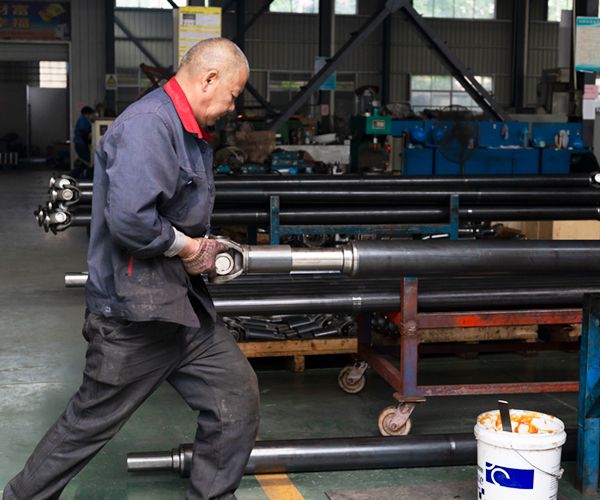

- Producing Process
- Why Choose Lynnuo
- How To Get Cardan Shafts from Lynnuo
Lynnuo can manufacture all kinds of Cardan shafts for you.
Cardan Joint Drawing as below for your reference:
Double Cardan Joint – Light Duty
Flange Diameter: From 58mm to 225mm
Nominal Torque: From 180N.m to 22KN.m
Standard Length: From 128mm to 480mm
Double Cardan Joint – Heavy Duty
Flange Diameter: From 160mm to 620mm
Nominal Torque: From 21KN.m to 1250KN.m
Standard Length: From 380mm to 1360mm
Flange Diameter: From 58mm to 225mm
Nominal Torque: From 180N.m to 22KN.m
Standard Length: From 255mm to 860mm
Please leave your detailed information, or send us the old Cardan shafts you used before. We will do the rest for you.
